View docs
Prepare
Add this line to your application’s Gemfile:
group :development do
gem 'r2-oas'
end
Command
$ bundle exec rake routes:oas:ui
Example
if there is routing like this:
$ bundle exec rake routes
Prefix Verb URI Pattern Controller#Action
rails_admin /admin RailsAdmin::Engine
api_v2_posts GET /api/v2/posts(.:format) api/v2/posts#index {:format=>:json}
POST /api/v2/posts(.:format) api/v2/posts#create {:format=>:json}
new_api_v2_post GET /api/v2/posts/new(.:format) api/v2/posts#new {:format=>:json}
edit_api_v2_post GET /api/v2/posts/:id/edit(.:format) api/v2/posts#edit {:format=>:json}
api_v2_post GET /api/v2/posts/:id(.:format) api/v2/posts#show {:format=>:json}
PATCH /api/v2/posts/:id(.:format) api/v2/posts#update {:format=>:json}
PUT /api/v2/posts/:id(.:format) api/v2/posts#update {:format=>:json}
DELETE /api/v2/posts/:id(.:format) api/v2/posts#destroy {:format=>:json}
api_v1_posts GET /api/v1/posts(.:format) api/v1/posts#index
POST /api/v1/posts(.:format) api/v1/posts#create
new_api_v1_post GET /api/v1/posts/new(.:format) api/v1/posts#new
edit_api_v1_post GET /api/v1/posts/:id/edit(.:format) api/v1/posts#edit
api_v1_post GET /api/v1/posts/:id(.:format) api/v1/posts#show
PATCH /api/v1/posts/:id(.:format) api/v1/posts#update
PUT /api/v1/posts/:id(.:format) api/v1/posts#update
DELETE /api/v1/posts/:id(.:format) api/v1/posts#destroy
api_v1_tasks GET /api/v1/tasks(.:format) api/v1/tasks#index
POST /api/v1/tasks(.:format) api/v1/tasks#create
new_api_v1_task GET /api/v1/tasks/new(.:format) api/v1/tasks#new
edit_api_v1_task GET /api/v1/tasks/:id/edit(.:format) api/v1/tasks#edit
api_v1_task GET /api/v1/tasks/:id(.:format) api/v1/tasks#show
PATCH /api/v1/tasks/:id(.:format) api/v1/tasks#update
PUT /api/v1/tasks/:id(.:format) api/v1/tasks#update
DELETE /api/v1/tasks/:id(.:format) api/v1/tasks#destroy
tasks GET /tasks(.:format) tasks#index
POST /tasks(.:format) tasks#create
new_task GET /tasks/new(.:format) tasks#new
edit_task GET /tasks/:id/edit(.:format) tasks#edit
task GET /tasks/:id(.:format) tasks#show
PATCH /tasks/:id(.:format) tasks#update
PUT /tasks/:id(.:format) tasks#update
DELETE /tasks/:id(.:format) tasks#destroy
users GET /users(.:format) users#index
POST /users(.:format) users#create
new_user GET /users/new(.:format) users#new
edit_user GET /users/:id/edit(.:format) users#edit
user GET /users/:id(.:format) users#show
PATCH /users/:id(.:format) users#update
PUT /users/:id(.:format) users#update
DELETE /users/:id(.:format) users#destroy
Routes for RailsAdmin::Engine:
dashboard GET / rails_admin/main#dashboard
index GET|POST /:model_name(.:format) rails_admin/main#index
new GET|POST /:model_name/new(.:format) rails_admin/main#new
export GET|POST /:model_name/export(.:format) rails_admin/main#export
bulk_delete POST|DELETE /:model_name/bulk_delete(.:format) rails_admin/main#bulk_delete
bulk_action POST /:model_name/bulk_action(.:format) rails_admin/main#bulk_action
show GET /:model_name/:id(.:format) rails_admin/main#show
edit GET|PUT /:model_name/:id/edit(.:format) rails_admin/main#edit
delete GET|DELETE /:model_name/:id/delete(.:format) rails_admin/main#delete
show_in_app GET /:model_name/:id/show_in_app(.:format) rails_admin/main#show_in_app

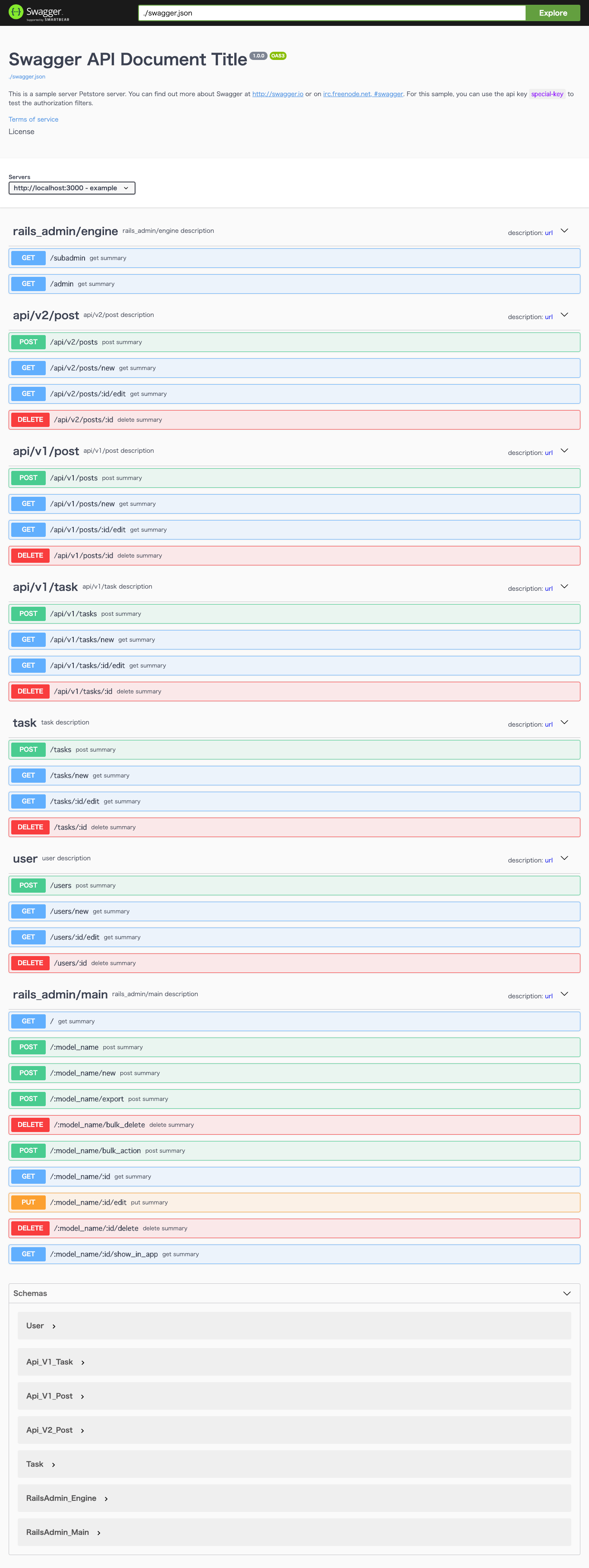

First try
The ui starts up with the schema set.
I, [2019-04-29T12:53:03.010443 #10516] INFO -- : [R2-OAS] start
I, [2019-04-29T12:53:03.010557 #10516] INFO -- : [R2-OAS] start
I, [2019-04-29T12:53:03.133380 #10516] INFO -- : [Build OAS schema files] start
I, [2019-04-29T12:53:03.133776 #10516] INFO -- : <From schema files>
I, [2019-04-29T12:53:03.135212 #10516] INFO -- : Fetch schema file: oas_docs/src/openapi.yml
I, [2019-04-29T12:53:03.136340 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/user.yml
I, [2019-04-29T12:53:03.137207 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:53:03.137860 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/api/v1/post.yml
I, [2019-04-29T12:53:03.138488 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/api/v2/post.yml
I, [2019-04-29T12:53:03.139113 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/task.yml
I, [2019-04-29T12:53:03.139660 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/rails_admin/engine.yml
I, [2019-04-29T12:53:03.141082 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/rails_admin/main.yml
I, [2019-04-29T12:53:03.141426 #10516] INFO -- : Fetch schema file: oas_docs/src/externalDocs.yml
I, [2019-04-29T12:53:03.142055 #10516] INFO -- : Fetch schema file: oas_docs/src/tags.yml
I, [2019-04-29T12:53:03.142364 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/user.yml
I, [2019-04-29T12:53:03.142690 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:53:03.143078 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/api/v1/post.yml
I, [2019-04-29T12:53:03.143408 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/api/v2/post.yml
I, [2019-04-29T12:53:03.143643 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/task.yml
I, [2019-04-29T12:53:03.143971 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/rails_admin/engine.yml
I, [2019-04-29T12:53:03.144315 #10516] INFO -- : Fetch schema file: oas_docs/src/components/schemas/rails_admin/main.yml
I, [2019-04-29T12:53:03.144806 #10516] INFO -- : Fetch schema file: oas_docs/src/info.yml
I, [2019-04-29T12:53:03.145013 #10516] INFO -- : Fetch schema file: oas_docs/src/servers.yml
I, [2019-04-29T12:53:03.145597 #10516] INFO -- : <Update schema files>
I, [2019-04-29T12:53:03.146179 #10516] INFO -- : Merge schema file: oas_docs/src/openapi.yml
I, [2019-04-29T12:53:03.146613 #10516] INFO -- : Merge schema file: oas_docs/src/info.yml
I, [2019-04-29T12:53:03.147470 #10516] INFO -- : Merge schema file: oas_docs/src/tags.yml
I, [2019-04-29T12:53:03.147492 #10516] INFO -- : [Build OAS schema files (paths)] start
I, [2019-04-29T12:53:03.183824 #10516] INFO -- : <From schema files>
I, [2019-04-29T12:53:03.184629 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/user.yml
I, [2019-04-29T12:53:03.185143 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:53:03.185661 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/api/v1/post.yml
I, [2019-04-29T12:53:03.186202 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/api/v2/post.yml
I, [2019-04-29T12:53:03.186675 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/task.yml
I, [2019-04-29T12:53:03.187142 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/rails_admin/engine.yml
I, [2019-04-29T12:53:03.188050 #10516] INFO -- : Fetch schema file: oas_docs/src/paths/rails_admin/main.yml
I, [2019-04-29T12:53:03.188673 #10516] INFO -- : <Update schema files (paths)>
I, [2019-04-29T12:53:03.189751 #10516] INFO -- : Merge schema file: oas_docs/src/paths/rails_admin/engine.yml
I, [2019-04-29T12:53:03.190945 #10516] INFO -- : Merge schema file: oas_docs/src/paths/api/v2/post.yml
I, [2019-04-29T12:53:03.192400 #10516] INFO -- : Merge schema file: oas_docs/src/paths/api/v1/post.yml
I, [2019-04-29T12:53:03.193803 #10516] INFO -- : Merge schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:53:03.195408 #10516] INFO -- : Merge schema file: oas_docs/src/paths/task.yml
I, [2019-04-29T12:53:03.196820 #10516] INFO -- : Merge schema file: oas_docs/src/paths/user.yml
I, [2019-04-29T12:53:03.199474 #10516] INFO -- : Merge schema file: oas_docs/src/paths/rails_admin/main.yml
I, [2019-04-29T12:53:03.199496 #10516] INFO -- : [Build OAS schema files (paths)] end
I, [2019-04-29T12:53:03.199768 #10516] INFO -- : Merge schema file: oas_docs/src/externalDocs.yml
I, [2019-04-29T12:53:03.200231 #10516] INFO -- : Merge schema file: oas_docs/src/servers.yml
I, [2019-04-29T12:53:03.200257 #10516] INFO -- : [Build OAS schema files (components)] start
I, [2019-04-29T12:53:03.268381 #10516] INFO -- : <From schema files>
I, [2019-04-29T12:53:03.268772 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/user.yml
I, [2019-04-29T12:53:03.268969 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:53:03.269135 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/api/v1/post.yml
I, [2019-04-29T12:53:03.269280 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/api/v2/post.yml
I, [2019-04-29T12:53:03.269427 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/task.yml
I, [2019-04-29T12:53:03.269642 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/rails_admin/engine.yml
I, [2019-04-29T12:53:03.269793 #10516] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/rails_admin/main.yml
I, [2019-04-29T12:53:03.269847 #10516] INFO -- : <Update Components schema files (components/schemas)>
I, [2019-04-29T12:53:03.270491 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/rails_admin/engine.yml
I, [2019-04-29T12:53:03.271096 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/api/v2/post.yml
I, [2019-04-29T12:53:03.271632 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/api/v1/post.yml
I, [2019-04-29T12:53:03.272166 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:53:03.272620 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/task.yml
I, [2019-04-29T12:53:03.273053 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/user.yml
I, [2019-04-29T12:53:03.273541 #10516] INFO -- : Merge schema file: oas_docs/src/components/schemas/rails_admin/main.yml
I, [2019-04-29T12:53:03.273562 #10516] INFO -- : [Build OAS schema files (components)] end
I, [2019-04-29T12:53:03.273574 #10516] INFO -- : [Build OAS schema files] end
I, [2019-04-29T12:53:03.273584 #10516] INFO -- : [Build OAS docs from schema files] start
I, [2019-04-29T12:53:03.274133 #10516] INFO -- : Use schema file: oas_docs/src/openapi.yml
I, [2019-04-29T12:53:03.274566 #10516] INFO -- : Use schema file: oas_docs/src/paths/user.yml
I, [2019-04-29T12:53:03.275000 #10516] INFO -- : Use schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:53:03.275443 #10516] INFO -- : Use schema file: oas_docs/src/paths/api/v1/post.yml
I, [2019-04-29T12:53:03.276159 #10516] INFO -- : Use schema file: oas_docs/src/paths/api/v2/post.yml
I, [2019-04-29T12:53:03.277020 #10516] INFO -- : Use schema file: oas_docs/src/paths/task.yml
I, [2019-04-29T12:53:03.277364 #10516] INFO -- : Use schema file: oas_docs/src/paths/rails_admin/engine.yml
I, [2019-04-29T12:53:03.278296 #10516] INFO -- : Use schema file: oas_docs/src/paths/rails_admin/main.yml
I, [2019-04-29T12:53:03.278432 #10516] INFO -- : Use schema file: oas_docs/src/externalDocs.yml
I, [2019-04-29T12:53:03.278747 #10516] INFO -- : Use schema file: oas_docs/src/tags.yml
I, [2019-04-29T12:53:03.278897 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/user.yml
I, [2019-04-29T12:53:03.279043 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:53:03.279210 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/api/v1/post.yml
I, [2019-04-29T12:53:03.279356 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/api/v2/post.yml
I, [2019-04-29T12:53:03.279566 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/task.yml
I, [2019-04-29T12:53:03.279759 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/rails_admin/engine.yml
I, [2019-04-29T12:53:03.279935 #10516] INFO -- : Use schema file: oas_docs/src/components/schemas/rails_admin/main.yml
I, [2019-04-29T12:53:03.280107 #10516] INFO -- : Use schema file: oas_docs/src/info.yml
I, [2019-04-29T12:53:03.280223 #10516] INFO -- : Use schema file: oas_docs/src/servers.yml
I, [2019-04-29T12:53:03.301656 #10516] INFO -- : [Build OAS docs from schema files] end
I, [2019-04-29T12:53:03.301698 #10516] INFO -- : [R2-OAS] end
wait for single trap ...
When you press Ctrl + C , the ui closes and the following message appears.
^Ccontainer id: edd950ec30507b1138af1b714f0101ef0452d32d08b66e23eb6e22740c830576 removed
I, [2019-04-29T12:54:14.333082 #10516] INFO -- : [R2-OAS] end

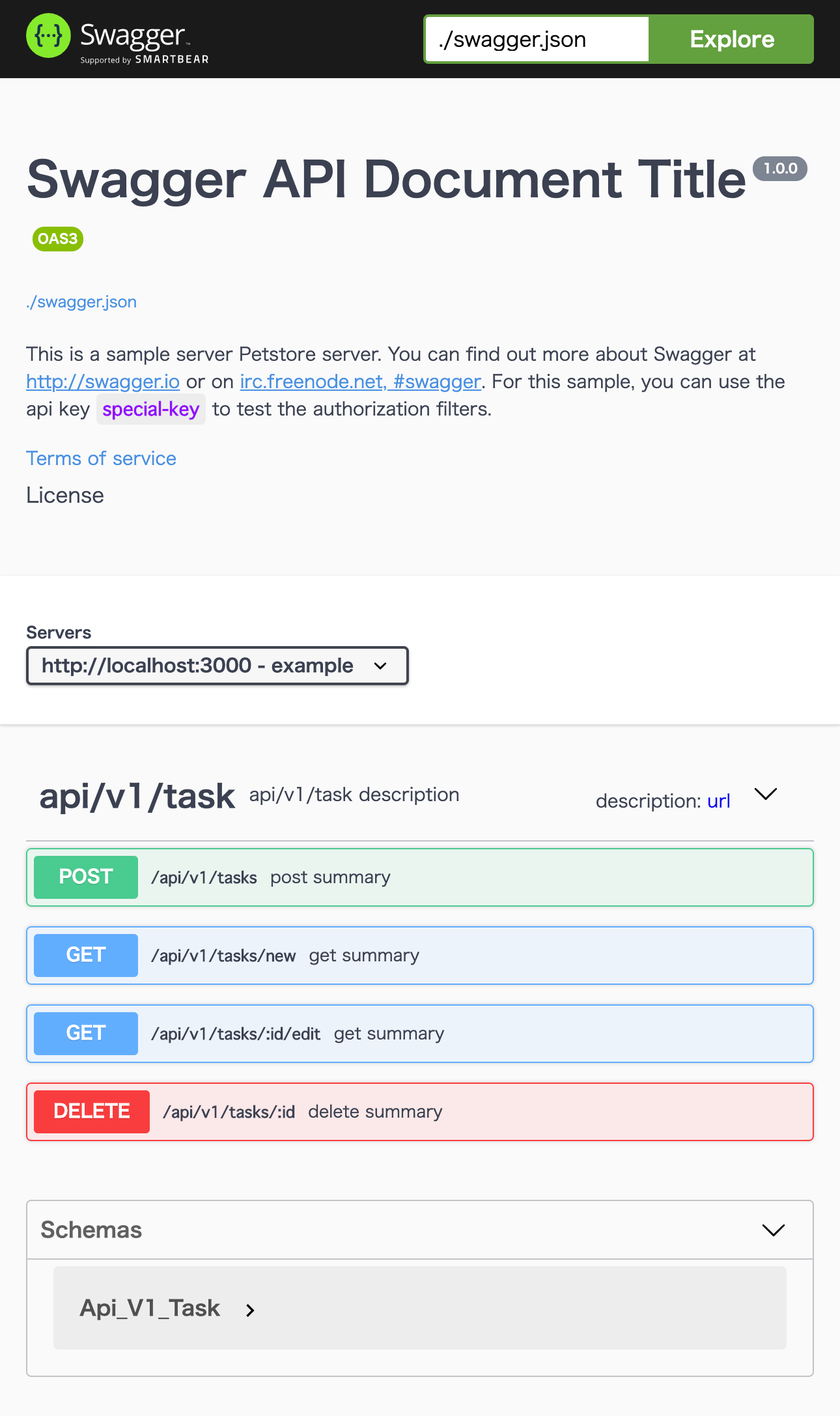

Use PATHS_FILE environment
If you want to generate docs by squeezing unit paths (For example, api/v1/task.yml), you set PATHS_FILE environment like this:
$ PATHS_FILE="../oas_docs/schema/paths/api/v1/task.yml" bundle exec rake routes:oas:editor
I, [2019-04-29T12:55:15.434226 #10698] INFO -- : [R2-OAS] start
I, [2019-04-29T12:55:15.434334 #10698] INFO -- : [R2-OAS] start
I, [2019-04-29T12:55:15.550674 #10698] INFO -- : [Build OAS schema files] start
I, [2019-04-29T12:55:15.551016 #10698] INFO -- : <From schema files>
I, [2019-04-29T12:55:15.551724 #10698] INFO -- : Fetch schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:55:15.551870 #10698] INFO -- : Fetch schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:55:15.552005 #10698] INFO -- : Fetch schema file: oas_docs/src/openapi.yml
I, [2019-04-29T12:55:15.552257 #10698] INFO -- : Fetch schema file: oas_docs/src/externalDocs.yml
I, [2019-04-29T12:55:15.552608 #10698] INFO -- : Fetch schema file: oas_docs/src/tags.yml
I, [2019-04-29T12:55:15.552847 #10698] INFO -- : Fetch schema file: oas_docs/src/info.yml
I, [2019-04-29T12:55:15.553001 #10698] INFO -- : Fetch schema file: oas_docs/src/servers.yml
I, [2019-04-29T12:55:15.553144 #10698] INFO -- : <Update schema files>
I, [2019-04-29T12:55:15.553650 #10698] INFO -- : Merge schema file: oas_docs/src/openapi.yml
I, [2019-04-29T12:55:15.554101 #10698] INFO -- : Merge schema file: oas_docs/src/info.yml
I, [2019-04-29T12:55:15.555634 #10698] INFO -- : Merge schema file: oas_docs/src/tags.yml
I, [2019-04-29T12:55:15.555714 #10698] INFO -- : [Build OAS schema files (paths)] start
I, [2019-04-29T12:55:15.589466 #10698] INFO -- : <From schema files>
I, [2019-04-29T12:55:15.590112 #10698] INFO -- : Fetch schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:55:15.590216 #10698] INFO -- : <Update schema files (paths)>
I, [2019-04-29T12:55:15.591618 #10698] INFO -- : Merge schema file: oas_docs/src/paths/rails_admin/engine.yml
I, [2019-04-29T12:55:15.593567 #10698] INFO -- : Merge schema file: oas_docs/src/paths/api/v2/post.yml
I, [2019-04-29T12:55:15.595107 #10698] INFO -- : Merge schema file: oas_docs/src/paths/api/v1/post.yml
I, [2019-04-29T12:55:15.596491 #10698] INFO -- : Merge schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:55:15.598158 #10698] INFO -- : Merge schema file: oas_docs/src/paths/task.yml
I, [2019-04-29T12:55:15.599531 #10698] INFO -- : Merge schema file: oas_docs/src/paths/user.yml
I, [2019-04-29T12:55:15.602490 #10698] INFO -- : Merge schema file: oas_docs/src/paths/rails_admin/main.yml
I, [2019-04-29T12:55:15.602516 #10698] INFO -- : [Build OAS schema files (paths)] end
I, [2019-04-29T12:55:15.602822 #10698] INFO -- : Merge schema file: oas_docs/src/externalDocs.yml
I, [2019-04-29T12:55:15.603159 #10698] INFO -- : Merge schema file: oas_docs/src/servers.yml
I, [2019-04-29T12:55:15.603181 #10698] INFO -- : [Build OAS schema files (components)] start
I, [2019-04-29T12:55:15.669796 #10698] INFO -- : <From schema files>
I, [2019-04-29T12:55:15.670091 #10698] INFO -- : Fetch Components schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:55:15.670122 #10698] INFO -- : <Update Components schema files (components/schemas)>
I, [2019-04-29T12:55:15.670729 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/rails_admin/engine.yml
I, [2019-04-29T12:55:15.671278 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/api/v2/post.yml
I, [2019-04-29T12:55:15.671796 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/api/v1/post.yml
I, [2019-04-29T12:55:15.672328 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:55:15.672745 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/task.yml
I, [2019-04-29T12:55:15.673160 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/user.yml
I, [2019-04-29T12:55:15.673729 #10698] INFO -- : Merge schema file: oas_docs/src/components/schemas/rails_admin/main.yml
I, [2019-04-29T12:55:15.673771 #10698] INFO -- : [Build OAS schema files (components)] end
I, [2019-04-29T12:55:15.673785 #10698] INFO -- : [Build OAS schema files] end
I, [2019-04-29T12:55:15.673830 #10698] INFO -- : [Build OAS docs from schema files] start
I, [2019-04-29T12:55:15.674608 #10698] INFO -- : Use schema file: oas_docs/src/paths/api/v1/task.yml
I, [2019-04-29T12:55:15.674796 #10698] INFO -- : Use schema file: oas_docs/src/components/schemas/api/v1/task.yml
I, [2019-04-29T12:55:15.675010 #10698] INFO -- : Use schema file: oas_docs/src/openapi.yml
I, [2019-04-29T12:55:15.675144 #10698] INFO -- : Use schema file: oas_docs/src/externalDocs.yml
I, [2019-04-29T12:55:15.675523 #10698] INFO -- : Use schema file: oas_docs/src/tags.yml
I, [2019-04-29T12:55:15.675700 #10698] INFO -- : Use schema file: oas_docs/src/info.yml
I, [2019-04-29T12:55:15.675817 #10698] INFO -- : Use schema file: oas_docs/src/servers.yml
I, [2019-04-29T12:55:15.679925 #10698] INFO -- : [Build OAS docs from schema files] end
I, [2019-04-29T12:55:15.679950 #10698] INFO -- : [R2-OAS] end
wait for single trap ...
When you press Ctrl + C , the ui closes and the following message appears.
^Ccontainer id: dfb4752353f17dd8c1eb60ea53049575ce9e0cf04d928499441dc06754955875 removed
I, [2019-04-29T12:58:02.840740 #10698] INFO -- : [R2-OAS] end
